| Carbon steel hot rolled Grade |
Steel Grade: For Commercial Quality
JIS: G3131 SPHC
ASTM: A569 A635 A659 A1011 CS Type A, B, C
SAE: 1006~1025
Steel Grade: For Drawing Quality
JIS: G3131 SPHD
SAE: 1006~1010
Steel Grade: For Deep Drawing Quality
JIS: G3131 SPHC
ASTM: A569 A635 A659 A1011 CS Type A, B, C
SAE: 1006~1025
Steel Grade: For Commercial Quality
JIS: G3131 SPHE
ASTM: A622 A1011 DS Type A, B
SAE: 1006~1010
Steel Grade:For General Structure (T.S. < 490 N/mm2)
JIS: G3101 SS330 SS400 G3106 SM400A G3132 SPHT1 SPHT2 SPHT3
ASTM: A36 A283 GR.C A570 GR.30~40 A1001 SS GR.30~40
SAE: 1010~1025
Steel Grade: For General Structure (T. S. ≧ 490 N/mm2)
JIS: G3101 SS490 G3106 SM490A SM490A SM490YA G3132 SPH4
ASTM: A570 GR.45~50 A607 GR.45~70 A1011 SS GR.45, 50 A1011 HSLAS GR.45~70
SAE: J1392 050X
| Carbon steel hot rolled available size |

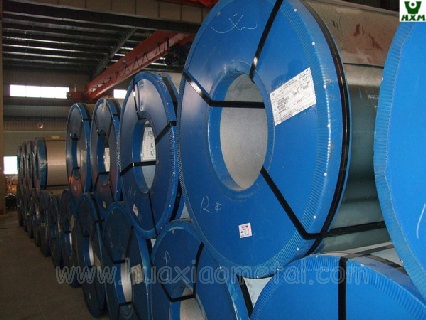

Coil
Thickness:1.50~10.00mm
Width: mill edge 600~2000mm
ID: 762mm
Strip
Thickness:1.50~10.00mm
Width: mill edge 30~600mm
ID: 762mm
Plate
Thickness:6.00~300mm
Width: cut edge 500~4000mm
Length: 1200~18000mm
Sheet
Thickness:1.50~5.99mm
Width: cut edge 50~1845mm
Length: 760~6100mm
