Home>product>Coated Steel PPGI/PPGL/PPGF |

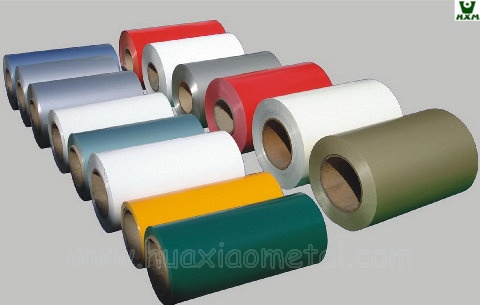

| Pre-painted Hot-dip Galvanized Steel Coil |
| Pre-painted Hot-dip 5% Al-Zn Coated Steel Coil |
| Pre-painted Hot-dip 55% Al-Zn Coated Steel Coil |
Product Type |
Coating Type |
Product Spec. |
Substrate Spec. |
Coating Designation |
Coating Thickness |
1.Pre-painted Hot-dip Galvanized Steel Coil (PPGI)
2.Pre-painted Hot-dip 5% Al-Zn Coated Steel Coil (PPGF)
3.Pre-painted Hot-dip 55%Al-Zn Coated
Steel Coil (PPGL) |
1.Polyester
2.Silicone Modified
Polyester
3.Acrylic
4.PVDF |
JIS G3312
(1994) |
CGCC, CGCH,
CGCD1, CGC340,
CGC400, CGC440,
CGC490, CGC570 |
JIS G3302
(1998) |
SGCC, SGCH,
SGCD1, SGC340,
SGC400, SGC440,
SGC490, SGC570 |
JIS G3302
Z10, Z12, Z18, Z20, Z22, Z25, Z27,Z35 |
Top Primer:
PU or Epoxy 5um
Top Coat:
15~25um
Back Coat:
PE or Epoxy 5~12um
|
JIS G3318
(1994)
|
CZACC, CZACH,
CZACD1, CZAC340,
CZAC400, CZAC440,
CZAC490, CZAC570 |
JIS G3317
(1994) |
SZACC, SZACH,
SZACH1, SZAC340,
SZAC400, SZAC440,
SZAC490, SZAC570 |
JIS G3317 (1994)
Y12, Y18, Y20, Y22,
Y25, Y27 |
JIS G3322
(1998) |
CGLCC, CGLCD,
CGLC400, CGLC440,
CGLC490, CGLC570 |
JIS G3321
(1998) |
SGLCC, SGLC400,
SGLC440, SGLC490,
SGLC570 |
JIS G3321 (1998)
AZ90, AZ120,
AZ150, AZ170 |
ASTM A755M
(2001) |
|
ASTM A653M
(2003) |
CS TYPE A, B, C
FS TYPE A, B
SS Grade 230, 255, 275, 340
DDS |
ASTM A653M (2003)
Z100, Z120, Z180,
Z275, Z350
|
ASTM A875M
(2002) |
ASTM A875M (2002)
ZGF90, ZGF135,
ZGF180, ZGF225,
ZGF275 |
ASTM A792M
(2003) |
ASTM A792M (2003)
AZ150, AZ165,
AZ180 |
EN 10169
(1997) |
|
EN 10142
(2000) |
DX51D, DX52D,
DX53D |
EN 10142 (2000)
Z100, Z140, Z200,
Z225, Z275 |
EN 10147
(2000) |
S220GD, S250GD,
S280GD, S320GD,
S350GD, S550GD |
EN 10147 (2000)
Z100, Z140, Z200,
Z225, Z275 |
EN 10214
(1995) |
S220GD DX51D,
S250GD DX52D,
S280GD DX53D,
S320GD, S350GD,
S555GD |
EN 10214 (1995)
ZA95, ZA130,
ZA185, ZA200, ZA255 |
EN 10215
(1995) |
EN 10215 (1995)
ZA100, AZ150,
AZ185 |
Remark |
1.Protective Film can be applied
2.The ASTM standards presented here adopt the imperial system (The equivalent metric system is marked by the “M” after the specification number, such as A755M and A792M)
3.Coating Thickness is for reference only. |
| Pre-painted Hot-dip Galvanized Steel Coil |
Thickness: 0.2~1.5mm
Width: 700~1534mm
| Pre-painted 5% Al-Zn Coated Steel Coil |
Thickness: 0.2~1.5mm
Width: 700~1260mm
| Pre-painted 55% Al-Zn Coated Steel Coil |
Thickness: 0.2~1.25mm
Width: 700~1220mm
|
|
